DRDC3105F-7
Manufacturer:
Diodes Incorporated
Mfr.Part #:
DRDC3105F-7
Datasheet:
Description:

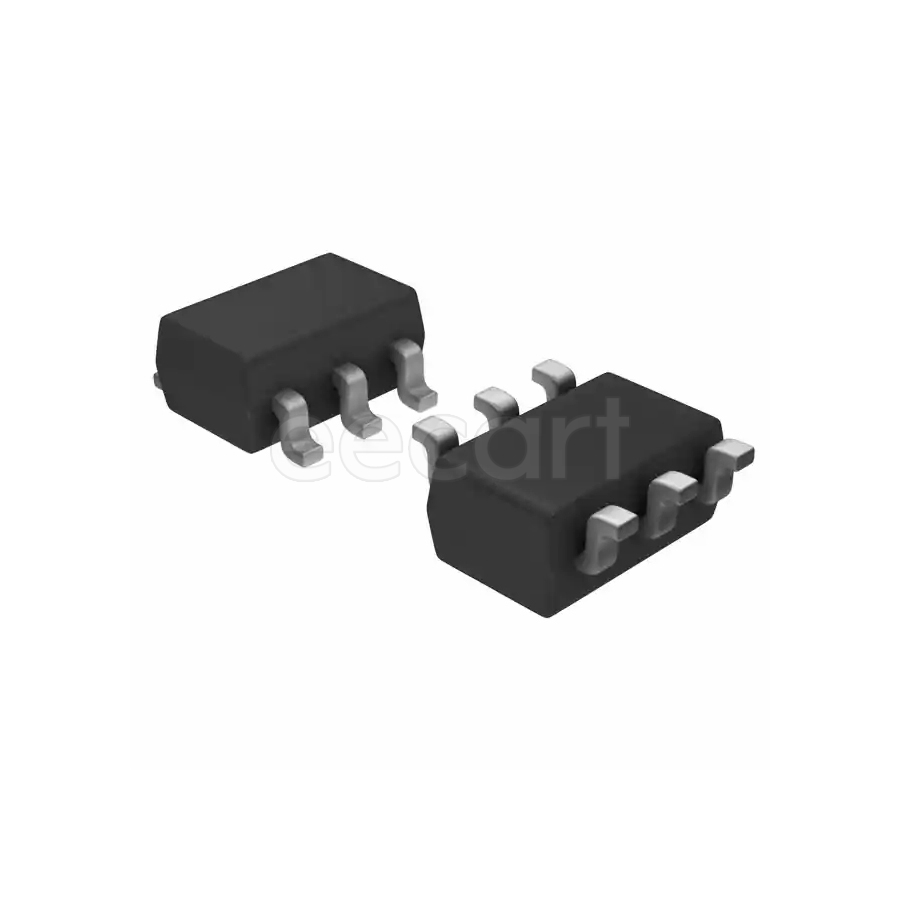

Hot Swap Controllers SOT-23 SMD/SMT number of channels:1 Inverting
| Parameter | Value |
|---|---|
| Length | 2.9 mm |
| Width | 1.4 mm |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 3 |
| Height | 1 mm |
| Radiation Hardening | No |
| REACH SVHC | No SVHC |
| Interface | On/Off |
| Output Current | 430 mA |
| Max Power Dissipation | 1.7 W |
| Max Supply Voltage | 5 V |
| Min Supply Voltage | 3 V |
| Max Output Current | 250 mA |
| Number of Channels | 1 |
| Element Configuration | Single |
| Operating Supply Current | 700 µA |
| Number of Outputs | 1 |
| Fall Time | 12.5 ns |
| Rise Time | 411 ns |
| Number of Drivers | 1 |
| RoHS | Compliant |
| Packaging | Reel |
| Type | Inverting |
Stock: 25
Distributors
pcbx
pcbxUnit Price$0.17520
Ext.Price$0.17520
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.17520 | $0.17520 |
| 10 | $0.15611 | $1.56110 |
| 50 | $0.13910 | $6.95500 |
| 100 | $0.12105 | $12.10500 |
| 500 | $0.10534 | $52.67000 |
| 1000 | $0.09340 | $93.40000 |
| 3000 | $0.08281 | $248.43000 |
| 5000 | $0.07752 | $387.60000 |
